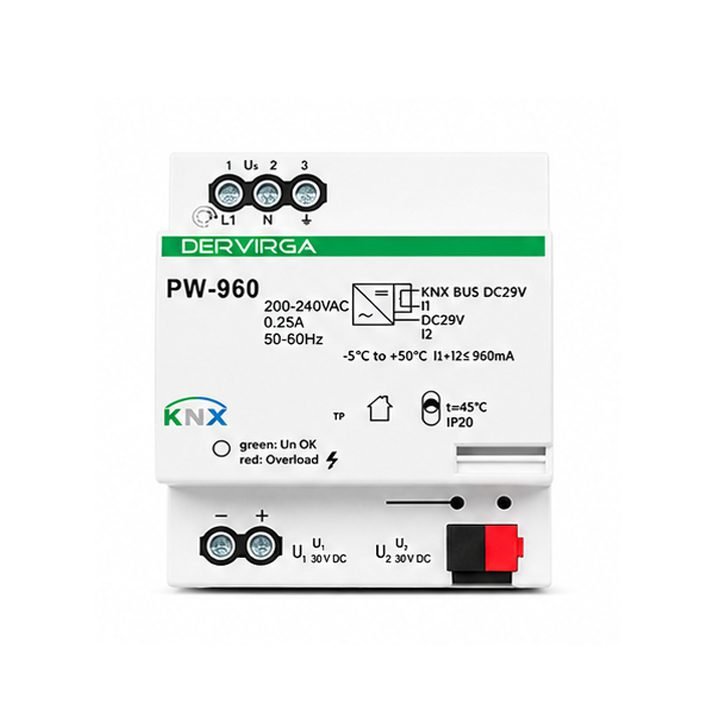

KNX Power Supply Module – Reliable 2-Channel 29V DC Output
Function Description
The KNX Power Supply Module delivers reliable power for KNX smart building systems with two independent channels supporting a total output current of up to 2000mA. It features four-level load indication (640mA, 960mA, 1200mA) to monitor energy usage effectively.
For safety, the module includes overload, short-circuit, and overvoltage protection. Any abnormal condition automatically cuts off the output and signals the fault via LED indicators, ensuring maximum safety for both devices and users. A dedicated bus reset button allows quick KNX bus recovery without disrupting the system.
Technical specifications:
input voltage 200–240VAC, KNX bus and auxiliary outputs 29V DC, maximum output current ≤1.2A, and power ≤36W. The device operates reliably across -25°C to 85°C, providing lightning protection for KNX communication and continuous stable operation.
Designed for 35mm DIN rail installation with compact dimensions of 75 × 90 × 64.5mm, this KNX power module is ideal for system integrators, electrical distributors, and smart building projects. It ensures safe, efficient, and stable operation for all KNX devices while simplifying installation and monitoring.
