K600 KNX Metal Smart Switch Panel Series
The K600 KNX metal smart switch panel is available in a 4-button layout and two distinct 8-button structures. It combines a full CNC-machined metal panel with four integrated 16A relay outputs, KNX bus supply and auxiliary power input, while supporting project-specific surface finishes, icons and logo customization.
Core K600 Features for Professional KNX Projects
The K600 Series combines KNX TP communication, four integrated relay outputs, 4-button and 8-button configurations, and full CNC-machined metal construction. Each project can be specified with the required button structure, surface finish and marking details.
KNX TP Communication
Designed for KNX TP building-control systems, with a 20–30V DC bus supply for professional project integration.
4 × 16A Relay Outputs
Four integrated 16A relay outputs support project-specific local switching configurations within the K600 panel.
4-Button Layout
A focused four-button structure provides clearly separated control positions for projects requiring a compact interface.
Two 8-Button Structures
Select either the contrasting black-key layout or the matching metal-key layout while retaining the K600 design language.
Full CNC Metal Panel
The metal face panel is produced by full CNC machining with a recorded machining tolerance of ±0.05 mm.
Finish & Marking Customization
Choose brushed and anodized, sandblasted and anodized, or electroplated finishes with project-specific icons, characters and logo options.
K600 Technical Specifications for Project Selection
Review the confirmed K600 electrical, control and construction data for project planning, finish selection and order configuration.
Product Construction & Configuration
| Communication Protocol | KNX TP |
|---|---|
| Button Configurations | 4-Button / 8-Button |
| 8-Button Structures | Black Key Layout / Matching Metal Key Layout |
| Panel Material | Metal panel |
| Manufacturing | Full CNC machining |
| Machining Tolerance | ±0.05 mm |
| Surface Finish Options | Brushed + anodized / Sandblasted + anodized / Electroplated |
| Marking Customization | Project-specific icons, characters and logo options |
| Installation | Wall mounted |
Electrical Supply & Relay Outputs
| KNX Bus Voltage | 20–30V DC |
|---|---|
| KNX Bus Current | 10 mA at 30V |
| KNX Power Consumption | 0.3 W |
| Auxiliary Supply | 12–30V DC |
| Auxiliary Working Current | 52 mA at 30V |
| Auxiliary Standby Current | 52 mA at 30V |
| Auxiliary Working Power | 1.56 W |
| Auxiliary Standby Power | 1.56 W |
| Relay Outputs | 4 × 16A |
Project configuration note: Final relay load category, sensor configuration, panel dimensions, back-box requirements and environmental ratings must be confirmed against the approved K600 technical documentation and order specification before final order approval.

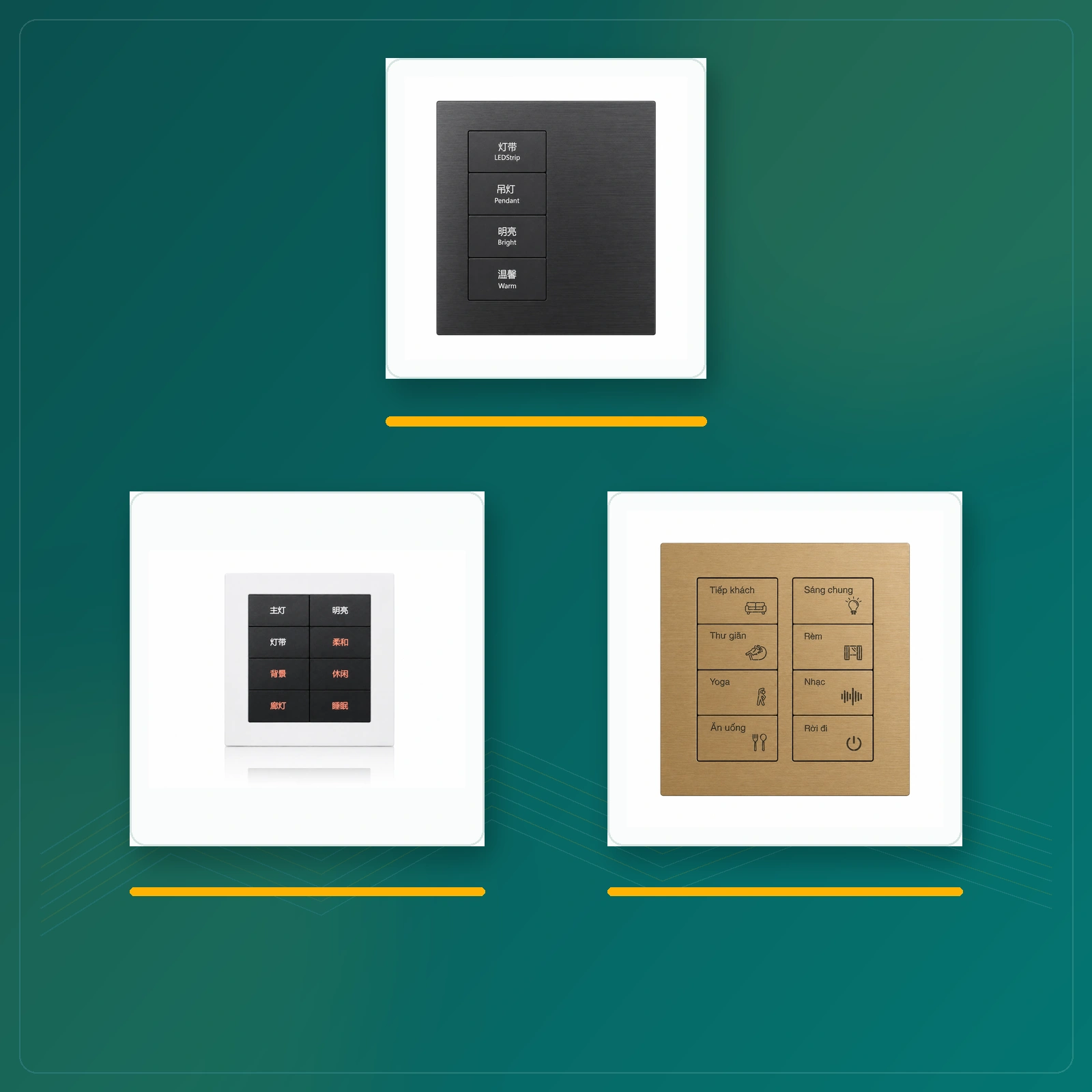

4-Button and Two Distinct 8-Button Structures
The K600 Series is available in one 4-button layout and two visually distinct 8-button structures. Select the button arrangement and surface coordination that match the required room interface and project design.
4-Button Layout
Focused Four-Button Interface
Four vertically arranged black keys provide a clearly separated layout for projects requiring a compact wall-control interface.

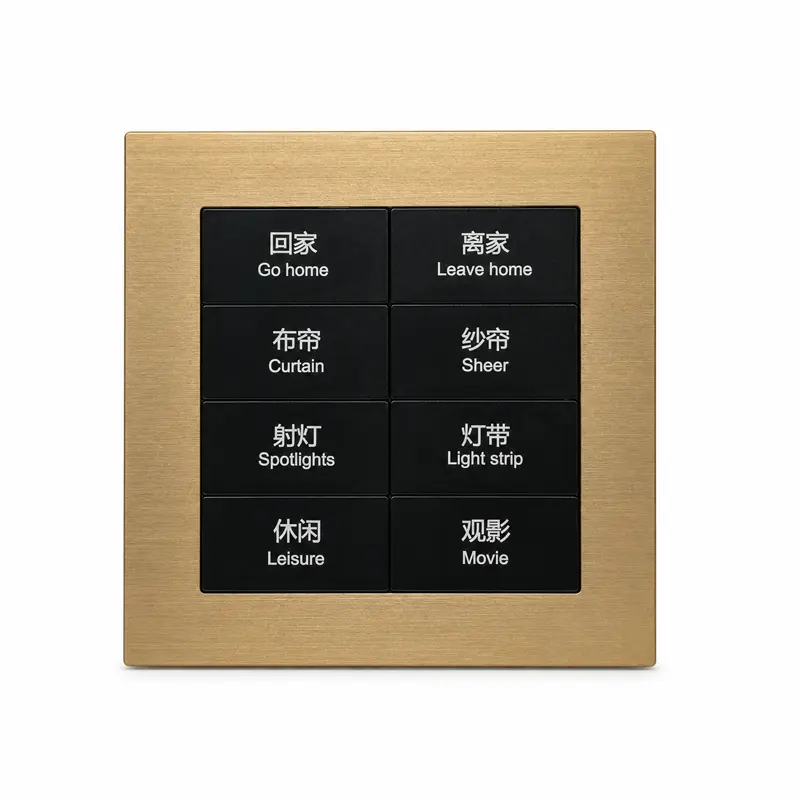

8-Button Black Key Layout
Contrasting 2 × 4 Key Structure
Eight black keys are arranged in two columns and four rows, creating a clear visual contrast against the selected metal face panel.

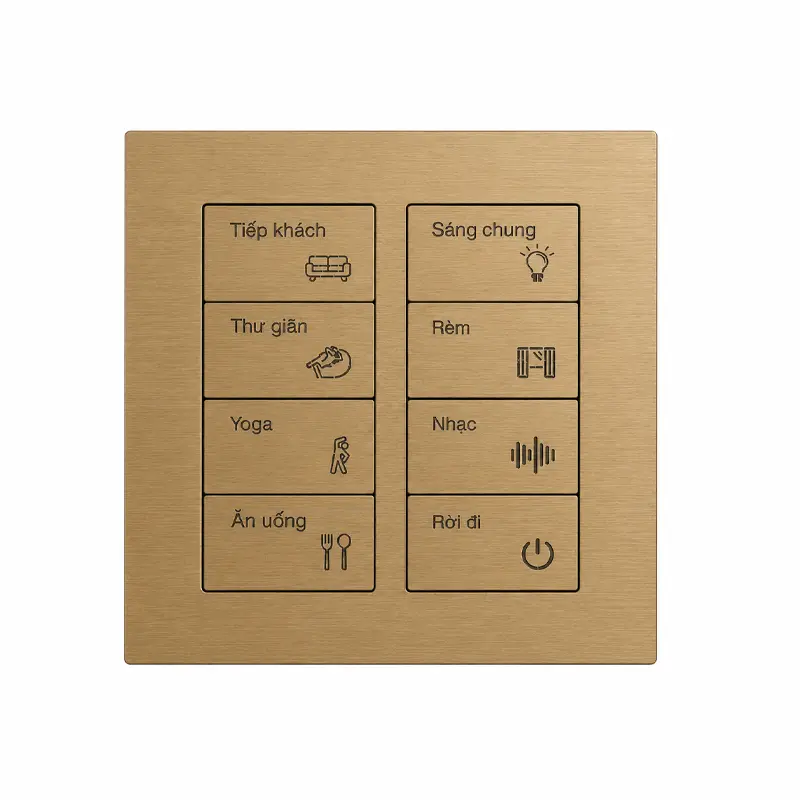

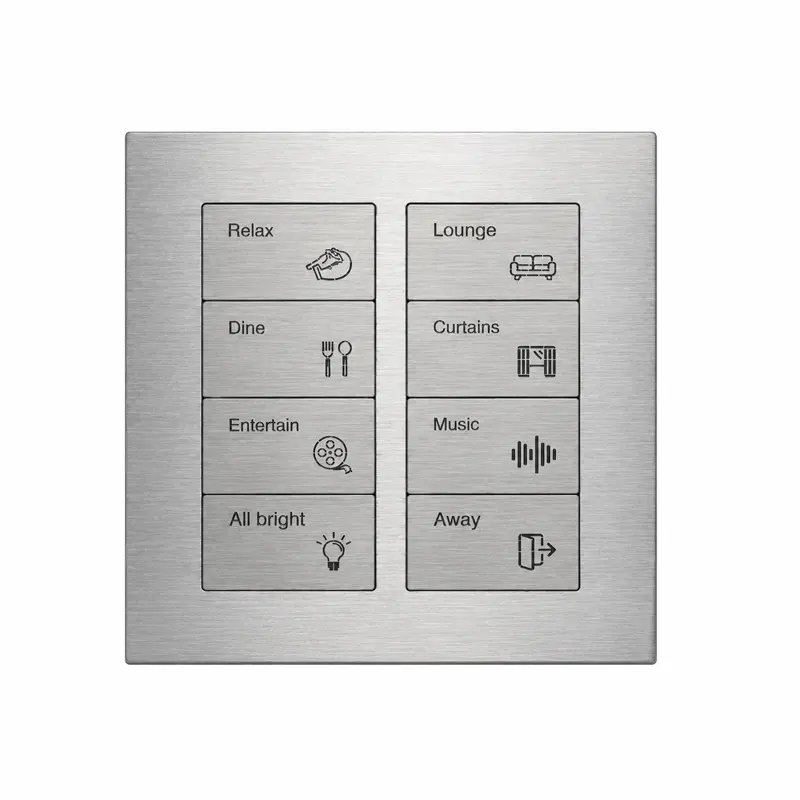

8-Button Matching Metal Key Layout
Coordinated 2 × 4 Key Structure
Eight keys are arranged in two columns and four rows with a finish coordinated to the metal face panel for a more integrated appearance.
Metal Construction, Surface Finishes & Customization
Specify the K600 Series with full CNC-machined metal construction, confirmed surface-treatment options and project-specific markings. Final colors, textures, icons and logo details are approved against project samples and order requirements.

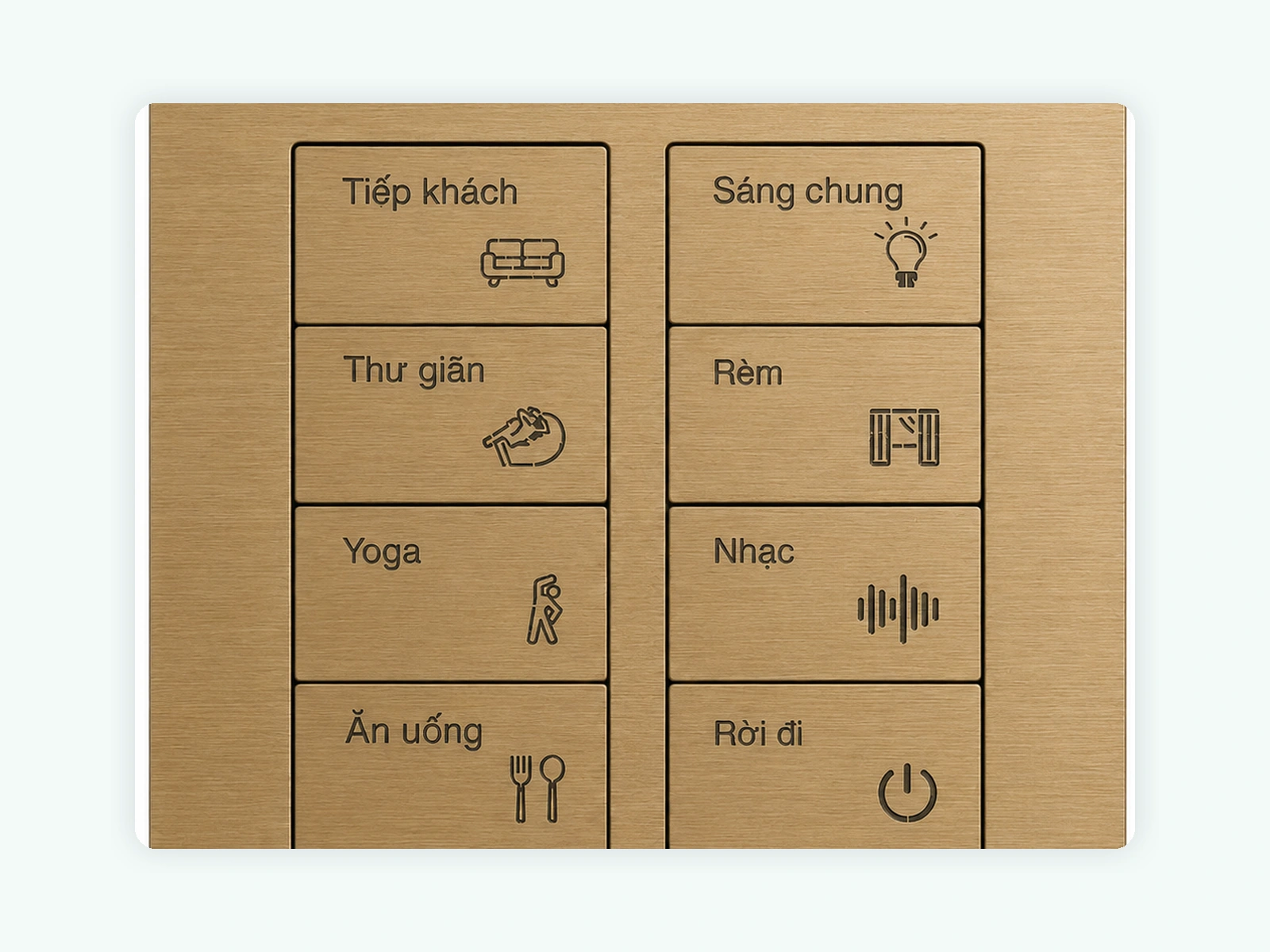

Full CNC Metal Panel
The K600 metal face panel is produced by full CNC machining with a recorded machining tolerance of ±0.05 mm, supporting precise openings, clean edges and consistent project presentation.

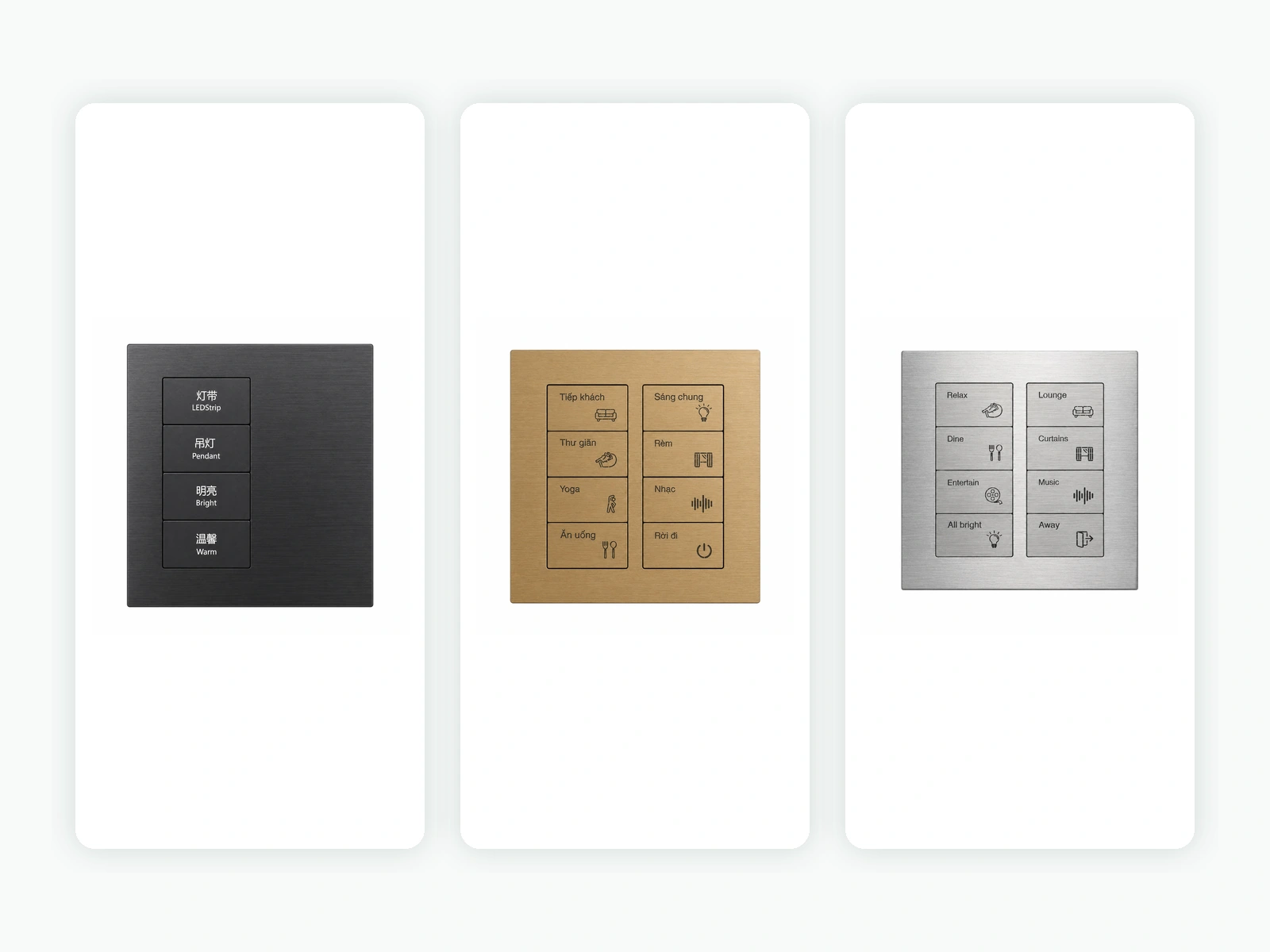

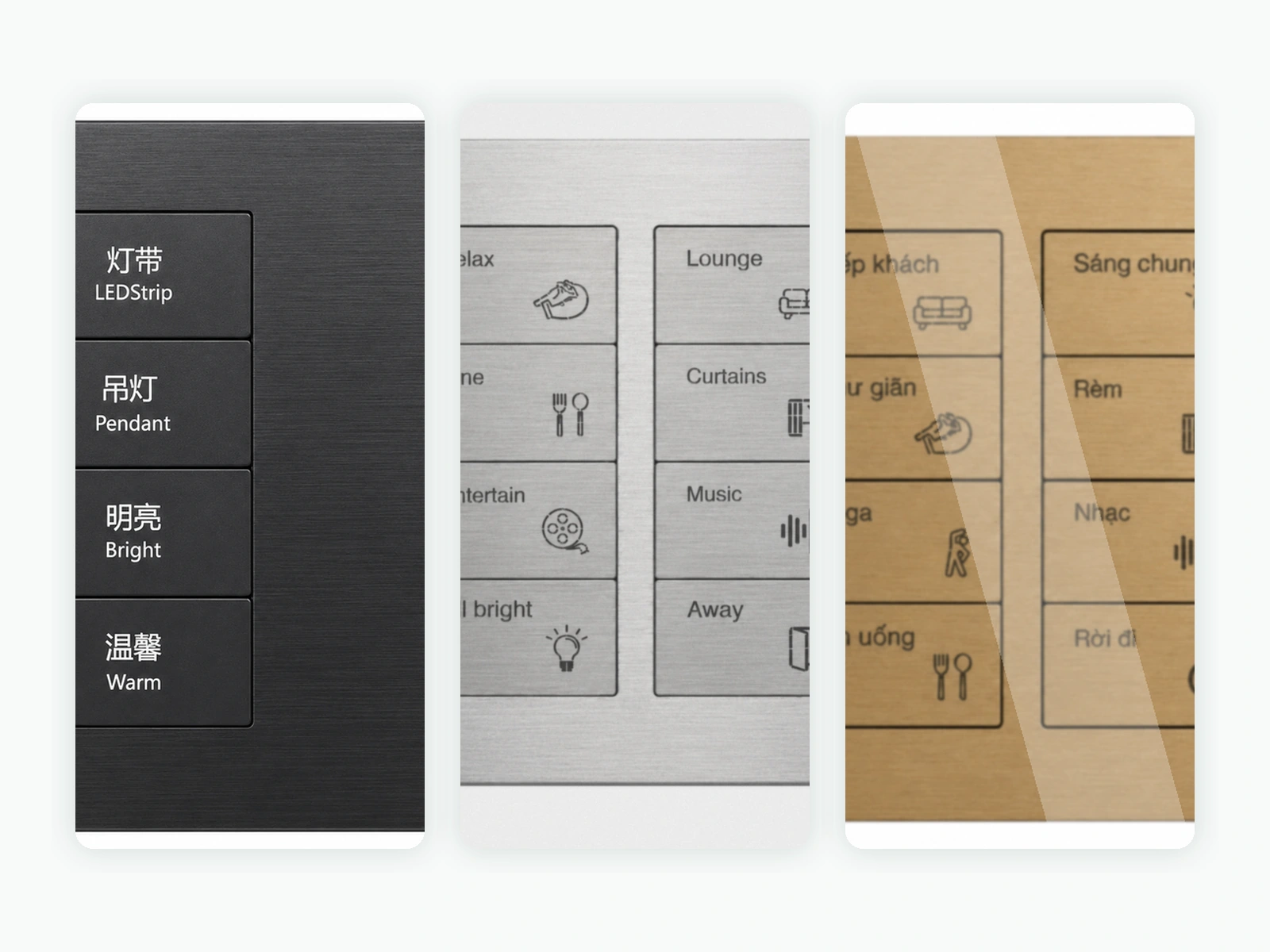

Brushed + Anodized Finish
Brushed surface texture with anodized treatment is available for K600 project configurations. Final color and appearance are confirmed against the approved finish sample before order approval.
Additional Surface Treatments
Sandblasted + anodized and electroplated treatments are available as project options. The selected process, color and surface sample are confirmed in the final order specification.
Icons, Characters & Logo
Button icons, characters and logo details can be customized for room functions, project branding and OEM/ODM requirements, subject to the approved artwork and panel layout.
Designed for Professional KNX Building Projects
The K600 Series combines KNX TP communication, integrated relay outputs, 4-button and 8-button layouts, and CNC-machined metal finishes for hospitality, residential and commercial project environments.
Smart Hotels
Create a coordinated guest-room wall interface with 4-button or 8-button layouts, integrated relay outputs, project-specific room markings and metal finishes.
Luxury Villas
Coordinate the K600 metal panel with premium villa interiors through project-selected finishes, button structures, icons and KNX room-control requirements.
Apartments & Residences
Provide a clear wall-control interface for apartment and residential KNX projects using the required 4-button or 8-button structure and project-specific markings.
Commercial Buildings

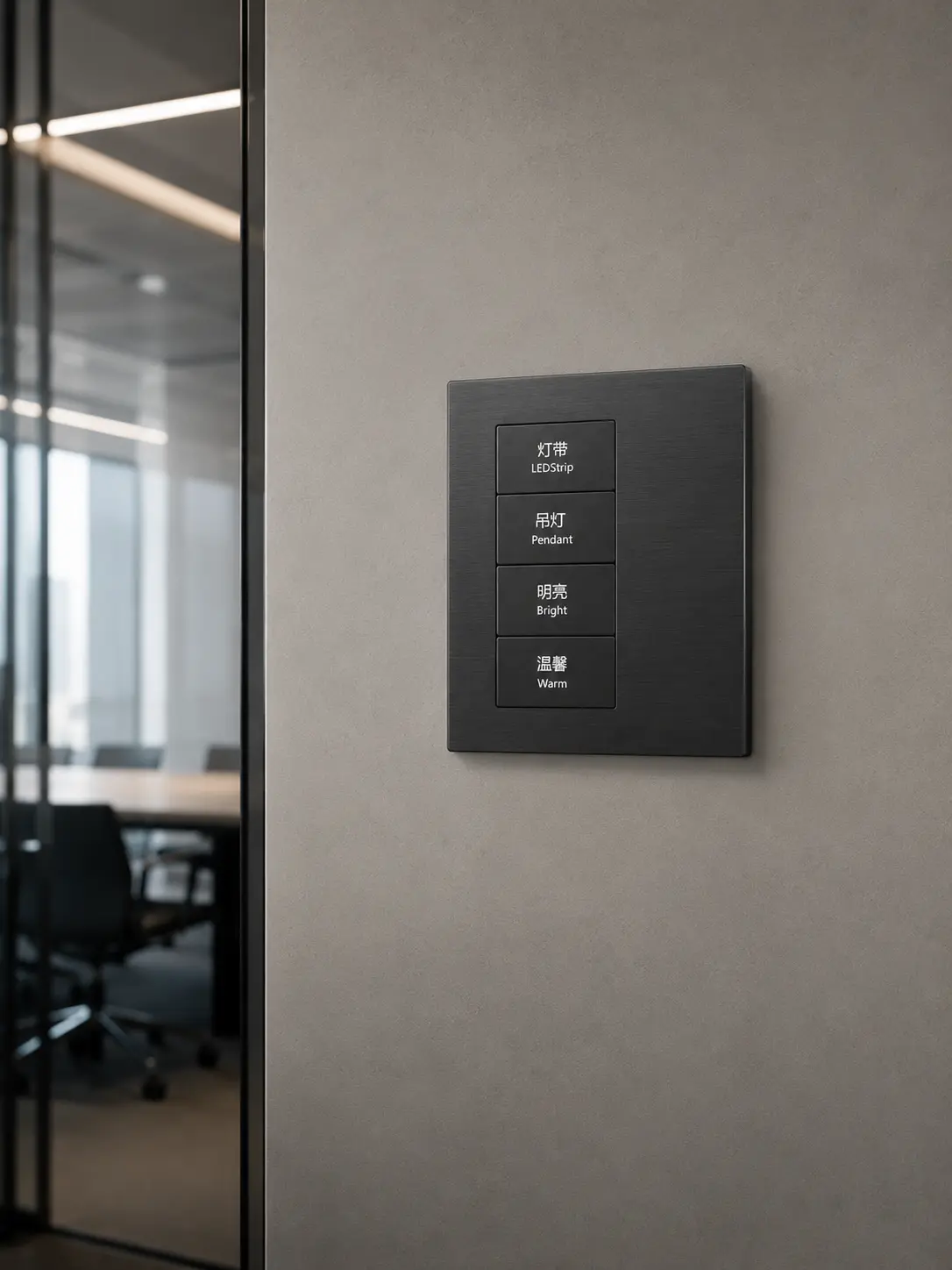

Support room and area control points in offices, meeting rooms and commercial spaces with KNX communication, four integrated relay outputs and metal construction.

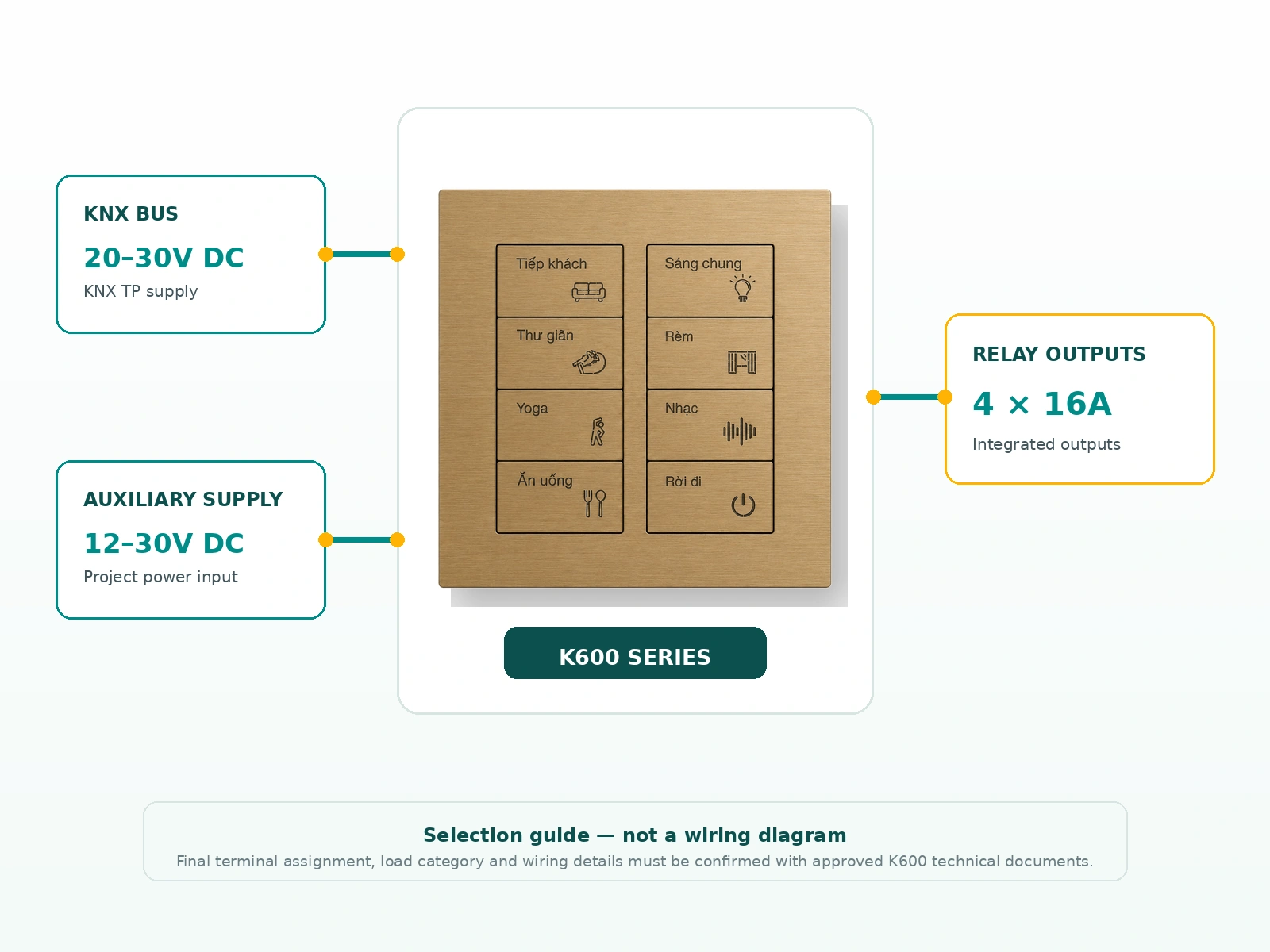

KNX Power, Relay Outputs & Project Integration
Review the confirmed K600 KNX supply, auxiliary power, integrated relay outputs and button-layout options for project selection. Final terminal assignments, load categories, wiring details and installation requirements must be verified against the approved K600 technical documents.
| Communication | KNX TP |
|---|---|
| KNX Bus Supply | 20–30V DC |
| KNX Bus Current | 10 mA at 30V |
| KNX Power Consumption | 0.3 W |
| Auxiliary Supply | 12–30V DC |
| Auxiliary Current | 52 mA at 30V |
| Auxiliary Power | 1.56 W |
| Relay Outputs | 4 × 16A integrated outputs |
| Button Layouts | 4-button / two distinct 8-button structures |
| Installation | Wall mounted |
This overview is for product selection only and is not a wiring diagram. Final terminal assignment, load category and installation details must be confirmed with the approved K600 technical documents.
Standard Dimensions for Fast Project Installation
The K600 Series uses a standard 86 × 86 mm panel format and is designed for installation in a standard 86-type wall back box, supporting efficient integration into residential, hotel and commercial KNX projects.
Product Dimensions
Panel Size
Panel Thickness
Rear Housing Depth
Installation Process
Confirm that the standard 86-type wall back box is securely installed and provides sufficient internal space for wiring.
Connect the KNX TP bus and required auxiliary supply according to the approved K600 wiring diagram, terminal assignment and project specification.
Place the rear housing into the back box and fasten the device securely while keeping the wiring correctly arranged.
Fit the metal front panel, complete KNX commissioning and verify the configured buttons, relay outputs and approved project functions.
Installation, wiring and KNX commissioning must be completed by qualified professionals. Confirm the back-box depth, wiring space, terminal assignment and project configuration before installation.
Request K600 Technical Files & Project Assistance
Request the latest K600 documents for specification review, installation, wiring, KNX commissioning and project approval. File availability is confirmed according to the selected button structure, product version and project requirements.
Need Technical Assistance?
Share your project type, selected 4-button or 8-button structure, finish, quantity and integration requirements. Our team will help confirm the suitable K600 configuration and current technical files.
4-button and 8-button structure selection
KNX supply, relay output and installation review
Finish, icons, logo and OEM / ODM consultation
Please include the project type, required button layout, quantity, finish, destination market and requested technical files.
Technical Resources
Confirmed electrical data, dimensions, construction, finish options and project-order configuration.
Back-box preparation, power connection, device installation, testing and commissioning precautions.
Approved terminal assignment, KNX bus, auxiliary supply and relay-output connection reference.
86 × 86 mm panel size, 7 mm panel thickness and 35 mm rear housing depth reference.
Request the current ETS status, KNX certification coverage, compliance files and project-specific technical documents for the confirmed K600 configuration.
Flexible K600 Customization for Your KNX Project
Configure the K600 Series according to your project, brand and destination-market requirements. Button structure, surface treatment, color, icons, characters, logo artwork and project documentation can be confirmed before production.
Choose brushed + anodized, sandblasted + anodized or electroplated surface treatments with project-specific colors confirmed against the approved physical finish sample.
Select the 4-button layout, 8-button black-key structure or 8-button matching-metal-key structure, with approved icons and characters for the required room functions.
Prepare project branding, logo placement, button artwork and OEM / ODM presentation details according to the approved panel layout and order specification.
Review KNX TP supply, auxiliary power, four integrated 16A relay outputs, load-category requirements, packaging and supporting technical documents before production.
Build Your K600 Configuration
Share your project requirements with our team. We will help confirm the suitable K600 button structure, finish, artwork, power and relay requirements, quantity and technical-document needs for your application.
Confirm the 4-button or 8-button structure and project quantity
Select the surface treatment, color, icons, characters and logo
Review power supply, relay requirements, packaging and project documents
Please include the project type, required 4-button or 8-button structure, quantity, surface treatment, color, artwork requirements and destination market when submitting your request.
